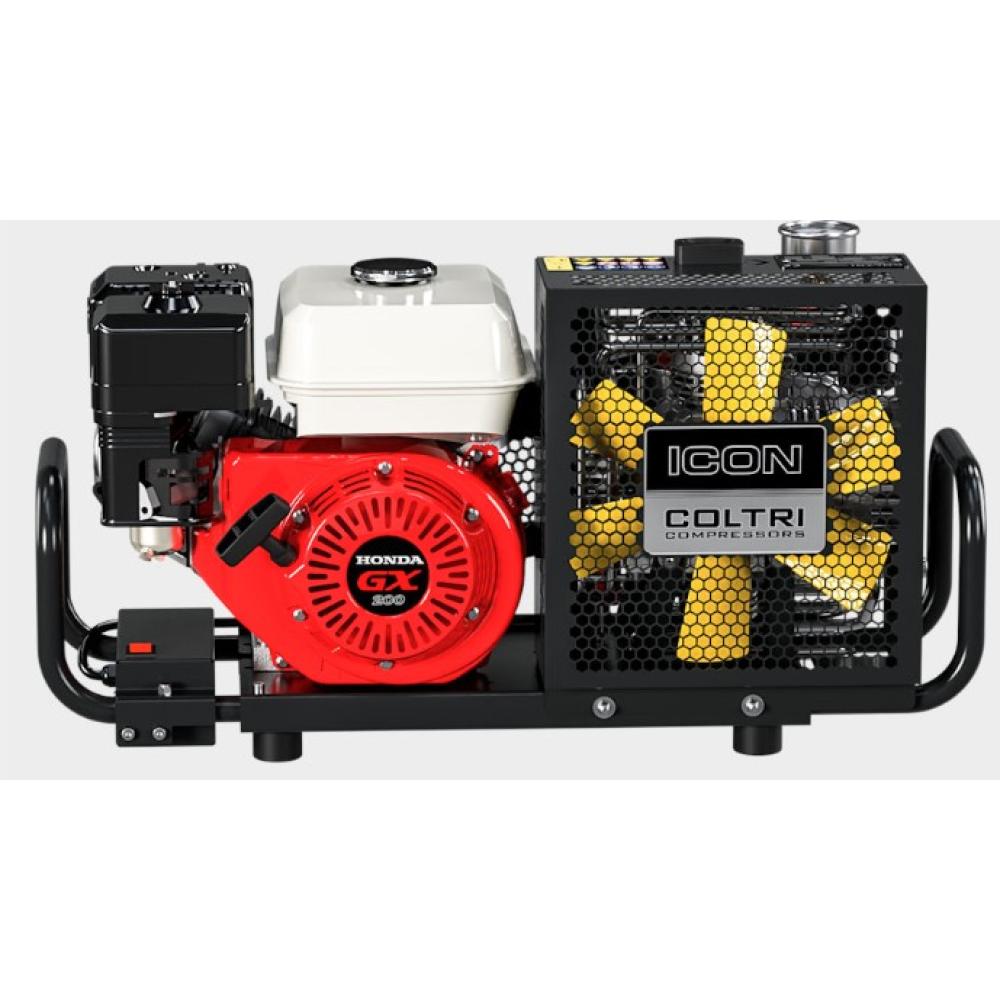

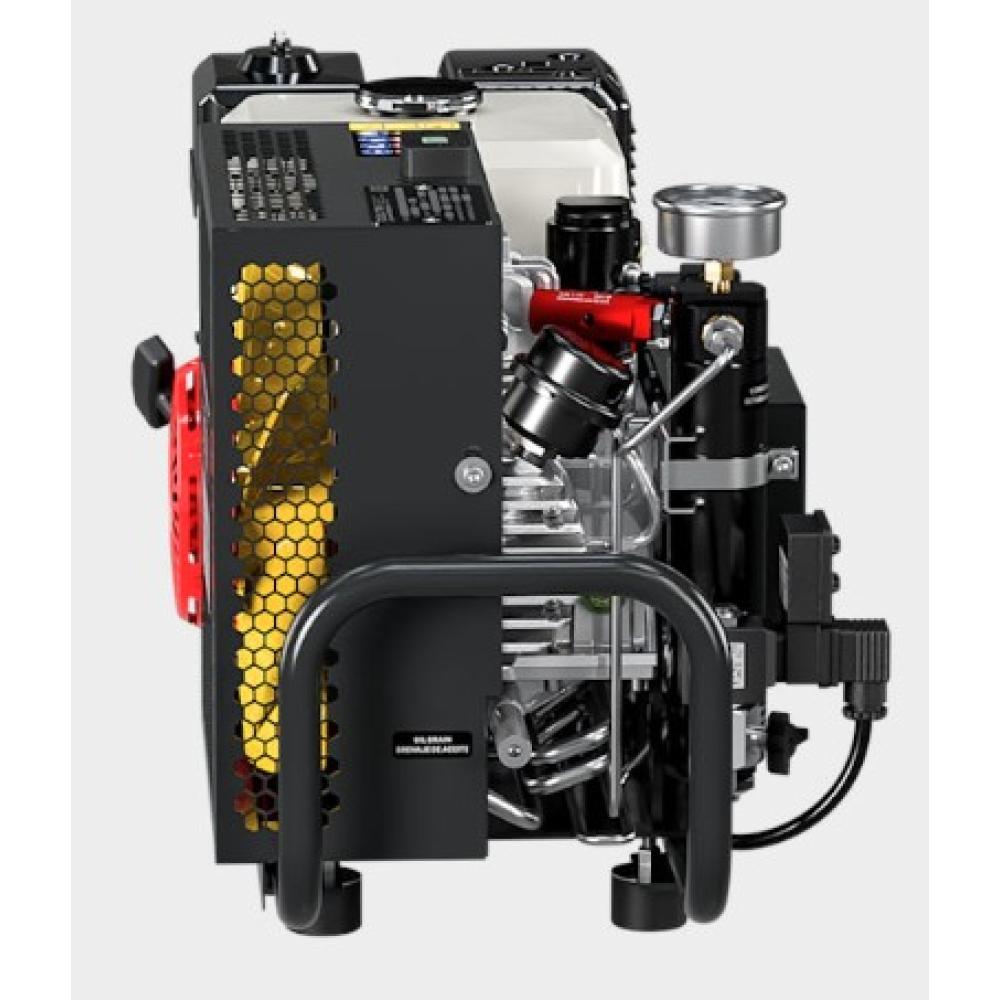

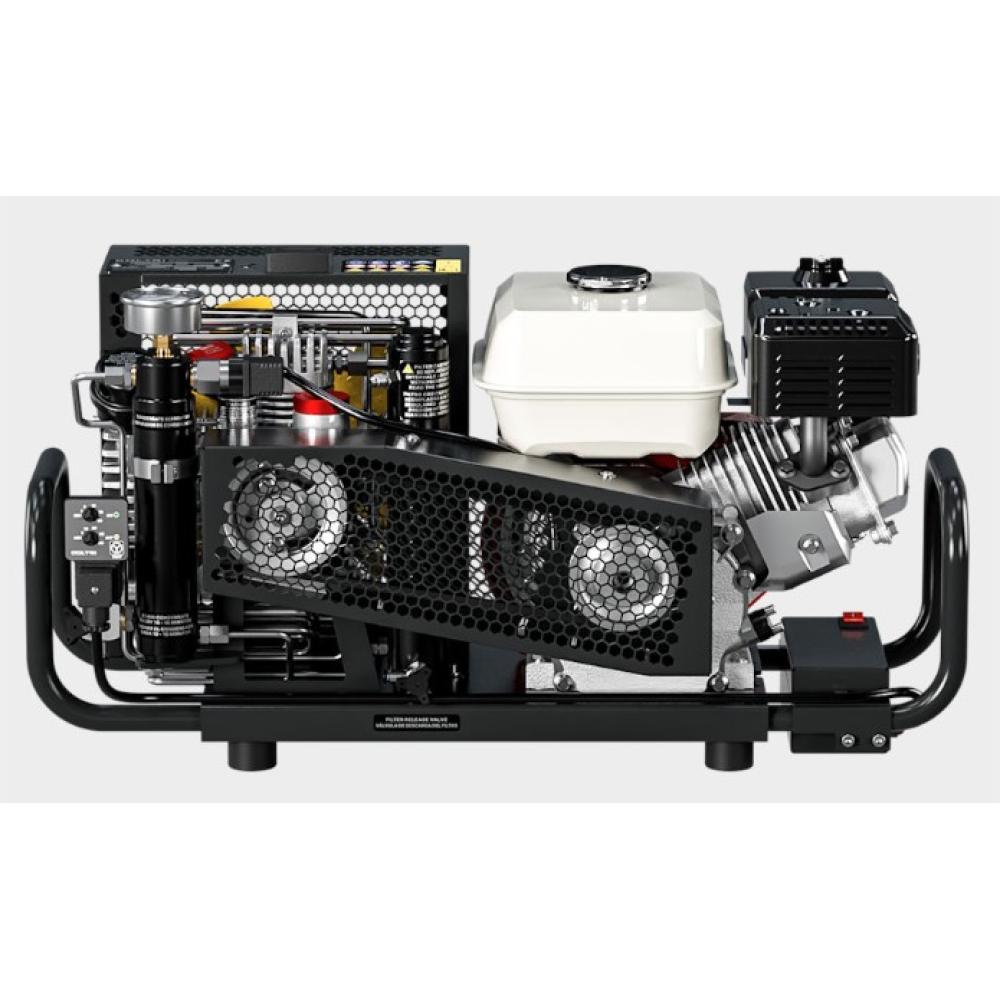

Coltri Icon Petrol
Technical specifications.
Type of gas
Breathing air EN 12021 – Nitrox 40% max O2 – Helium – Nitrogen
Suction pressure
Atmospheric max 300 millibars
Pressure rating
230 bar / 330 bar
Operating pressure
230 bar / 330 bar
Max working pressure
330 bar
Allowable temperature range
-10° C ÷ +40° C
Allowable altitude range
0 ÷ 2,000 m SLM
Maximum allowed inclination
6°
Design
Basic
Oil
Synthetic oil Coltri ST 755
Oil change interval
1 year / 50 h
Frame
Steel – Color Black RAL 9005 – Powder coated – Scratch resistant
Compressor
Pump group flow rate
Measured while filling a 10-liter cylinder from 0-200 bartolerance +/- 5% at + 20 °C room temperature.
100 SH
100 l/min
6 m3/h
3.5 CFM
100 SK
100 l/min
6 m3/h
3.5 CFM
Purification system
Eco-filter
Cooling air flow
100 SH
990 m3/h
100 SK
990 m3/h
Weight
Standard model. Dimensions and weight may vary depending on accessories..
100 SH
37 kg
81.6 lb
100 SK
37 kg
81.6 lb

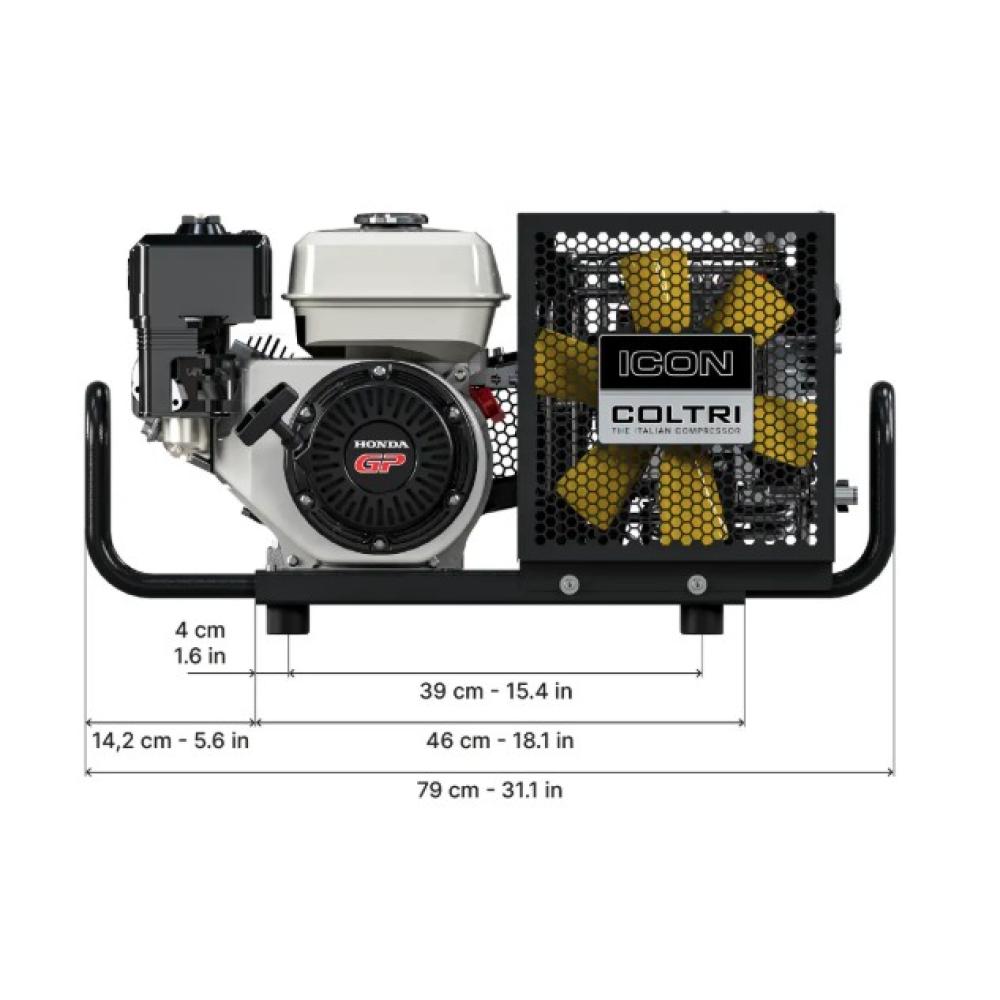

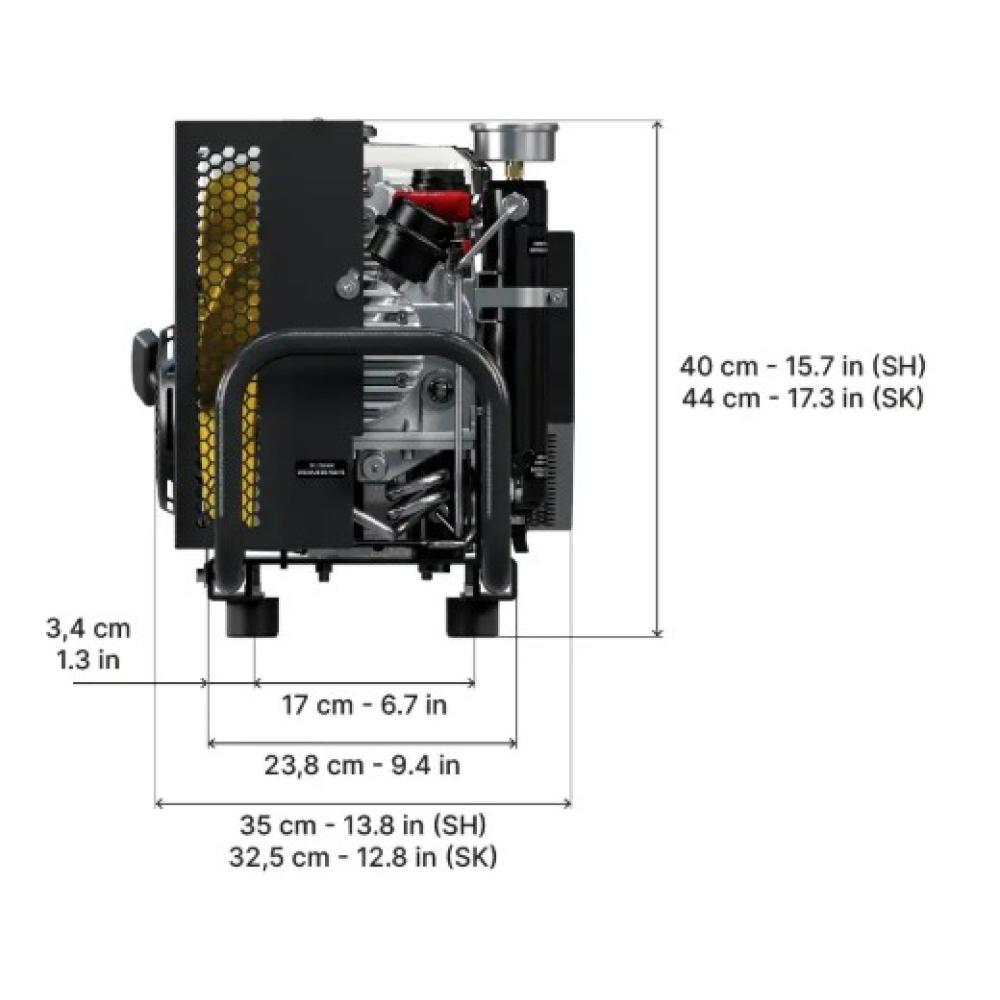

Dimensions
(B x D x A)
Engine
Power
100 SH
4.3 kW
5.8 Hp
100 SK
4.1 kW
5.5 Hp
Engine type
100 SH
Benzina Honda GP 200
100 SK
Benzina Kohler 265
Engine RPM (RPM)
100 SH
2.880
100 SK
2.880
Protection class
IP54
100 SH
79 x 35 x 40 cm
31.1 x 13.8 x 15.7 in
100 SK
79 x 32.5 x 44 cm
31.1 x 12.8 x 17.3 in
